Friction Welding Mechanism

Mechanism of Friction Welding

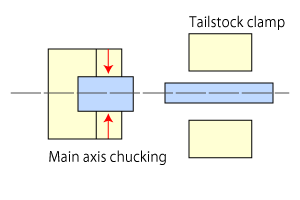

  1. Machanism of friction welding 1. Tighten the spindle chuck.

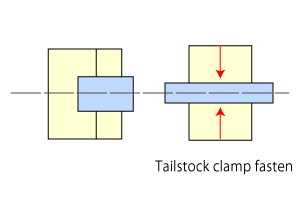

  2. Machanism of friction welding 2.Tailstock clamp fasten.

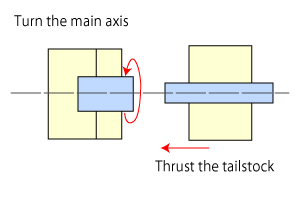

  3. Machanism of friction welding 3.turn the main axis and thrust the tailstock.

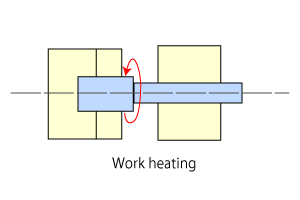

  4. Machanism of friction welding 4. Work heating.

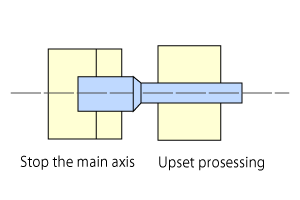

  5. Machanism of friction welding 5.Stop the main axis and upset processing

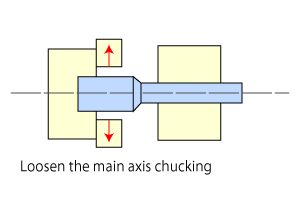

  6. Machanism of friction welding 6. Losen the main axis chucking

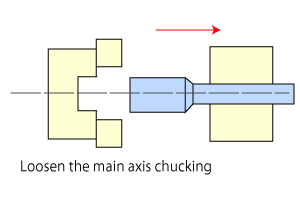

  7. Machanism of friction welding 7. Loosen the main axis chucking

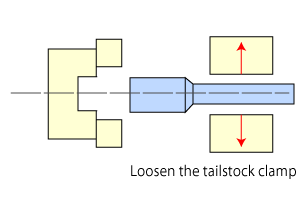

  8. Machanism of friction welding 8. Loosen the tailstock clamp.
